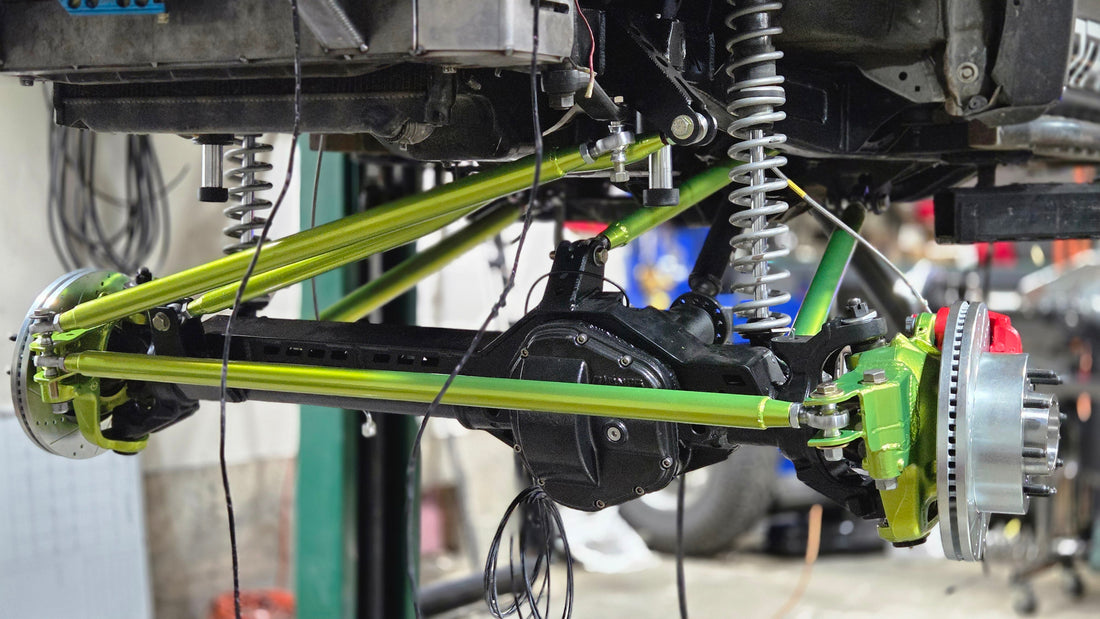

Kingpin Dana 60 & 14 Bolt vs 2005+ Super Duty Dana 60 and Sterling 10.5 Technical Comparison for 1-Ton SAS Builds
Share
When people start planning a 1-ton axle swap for a 1995 or newer Toyota truck — whether it's a Tacoma, 4Runner, or another platform — the most common starting point is a Dana 60 kingpin front axle paired with a GM 14-bolt rear axle. This combination earned its reputation through decades of off-road use and heavy truck applications, and for good reason. It is proven, affordable, and backed by one of the deepest aftermarket support catalogs of any solid axle platform.
However, modern heavy-duty axles have evolved significantly. The axles found under 2005 and newer Ford Super Duty trucks — specifically the Ford Super Duty Dana 60 front axle and Ford Sterling 10.5 rear axle — incorporate engineering improvements in pinion orientation, axle shaft design, steering geometry, braking performance, and bearing systems that make them worth serious consideration for any Toyota solid axle swap build.
This article focuses strictly on the technical differences between these two platforms, particularly in the areas that matter most for SAS builds running large tires and aggressive gearing.
FRONT AXLE COMPARISON: KINGPIN DANA 60 VS FORD SUPER DUTY DANA 60
Both the traditional kingpin Dana 60 and the 2005+ Ford Super Duty Dana 60 share a 9.75-inch ring gear, meaning raw differential strength at the ring and pinion is similar between the two. The meaningful differences come from the components surrounding the differential — pinion orientation, axle tube size, shaft diameter, knuckle design, and steering geometry.
HIGH PINION VS LOW PINION — WHY IT MATTERS FOR A SOLID AXLE SWAP
One of the most important and often overlooked differences between these two axle platforms is pinion orientation, and it is a significant factor in any Toyota SAS build.
The traditional kingpin Dana 60 — as sourced from older GM and Dodge heavy-duty trucks — is a low pinion axle. The pinion gear enters the ring gear from below the axle centerline.
The 2005 and newer Ford Super Duty Dana 60 is a high pinion axle. The pinion gear enters the ring gear from above the axle centerline.
For a 1-ton axle swap on a lifted Toyota truck, this distinction matters in three practical ways:
Ground Clearance
A high pinion axle positions the pinion nose and driveshaft yoke above the axle centerline. This raises the most exposed point of the differential housing higher off the ground, improving clearance over rocks and obstacles — exactly where a solid axle swap build needs it most.
Driveshaft Angle
On a lifted SAS Toyota, the front driveshaft must run at an angle between the transfer case output and the front differential. With a low pinion axle, the pinion points downward, increasing the overall driveshaft operating angle. A high pinion axle allows the pinion to point upward toward the transfer case output, reducing operating angle and improving driveshaft efficiency and longevity under full articulation.
Drive Side Load
In a high pinion front axle, the ring gear rotates such that torque is applied to the drive side of the gear teeth — the stronger, more supported side of the tooth profile. This provides a marginal strength advantage over a low pinion arrangement under the same torque load.
For long-wheelbase Toyota SAS builds — particularly Tacoma and 4Runner platforms — the high pinion orientation of the Super Duty Dana 60 is a meaningful advantage in both clearance and driveline geometry.
AXLE TUBE DIAMETER AND HOUSING STRENGTH
Housing rigidity directly affects axle shaft alignment, bearing life, and resistance to deflection under hard off-road use.
Kingpin Dana 60 axle tube specifications:
- Outer diameter: approximately 3.125 inches
- Wall thickness: varies by application
Ford Super Duty Dana 60 axle tube specifications:
- Outer diameter: 3.75 inches
- Wall thickness: 0.50 inches
The Super Duty housing uses significantly larger diameter tubes with a consistent, heavy wall thickness. This increased cross-sectional area provides substantially greater resistance to bending and torsional deflection — particularly important when large tires are applying shock loads through the axle housing during hard trail use.
AXLE SHAFT DESIGN AND STRENGTH
Axle shaft strength depends primarily on:
- Spline count
- Shaft diameter
- Spline root diameter
- Material and heat treatment
Typical kingpin Dana 60 axle shaft specifications:
- Inner axle spline count: 30 spline
- Minor shaft diameter: approximately 1.31 inches
- Outer axle spline count: 30 spline
- U-joint series: 1480
Ford Super Duty Dana 60 axle shaft specifications:
- Inner spline count: 35 spline
- Minor shaft diameter: approximately 1.50 inches
- Outer spline count: 35 spline
- U-joint series: 1550
The increased spline count raises the root diameter of the shaft — the smallest and most critical cross-section for torque resistance. Because torque capacity scales with shaft diameter, the Super Duty axle shafts are capable of handling significantly higher torque loads compared to traditional 30-spline shafts. For a Toyota 1-ton axle swap running 40-inch or larger tires with deep gearing, this is a real-world advantage.
PINION SHAFT SPECIFICATIONS
The pinion shaft is a critical load transfer point between the driveshaft and the ring and pinion set.
Kingpin Dana 60 pinion shaft:
- Pinion shaft diameter: 1.625 inches
- Pinion spline count: 29 spline
Ford Super Duty Dana 60 pinion shaft:
- Pinion shaft diameter: 1.625 inches
- Pinion spline count: 29 spline
Both axles share the same pinion shaft diameter and spline count. The strength advantage of the Super Duty platform comes from its larger axle tubes, larger shafts, stronger universal joints, and improved knuckle design — not the pinion shaft itself.
UNIVERSAL JOINT STRENGTH
Universal joints are often the first failure point in a front axle running large tires and aggressive gearing, making this a critical spec for any serious 1-ton axle swap build.
Kingpin Dana 60 — 1480 series U-joints:
- Bearing cap diameter: 1.375 inches
- Cross width: 4.188 inches
Ford Super Duty Dana 60 — 1550 series U-joints:
- Bearing cap diameter: 1.625 inches
- Cross width: 4.188 inches
The larger bearing cap diameter significantly increases the cross-sectional strength of the trunnion, allowing the joint to handle higher torque loads and the shock loading that comes with large tires on rough terrain.
STEERING KNUCKLE DESIGN
Steering knuckles take on large loads when oversized tires are wedged against obstacles or when steering forces are applied at low speed on the trail.
The Dana 60 kingpin knuckle uses a pivot system consisting of:
- Upper kingpin cap
- Spring assembly
- Kingpin bushings
While durable and time-proven, this design concentrates stress around the kingpin bore and steering arm mounting area.
The Ford Super Duty Dana 60 uses large ball-joint knuckles with significantly heavier castings, engineered to support the weight of modern diesel trucks:
- Thicker casting sections throughout
- Larger steering arm mounting areas
- Improved load distribution across the knuckle
The result is better resistance to the bending forces generated by large tires — a meaningful advantage for a Toyota solid axle swap running 40s or larger.
STEERING ANGLE AND TURNING RADIUS
Steering angle is one of the most noticeable real-world differences between these two axle platforms, especially on long-wheelbase Toyota SAS builds.
Typical steering angle:
- Kingpin Dana 60: approximately 35–38 degrees
- Ford Super Duty Dana 60: approximately 40–45 degrees
The increased steering angle delivers:
- Tighter turning radius
- Improved maneuverability in tight trail situations
- Fewer multi-point turns in rock gardens and switchbacks
On a long-wheelbase Tacoma or 4Runner solid axle swap, turning radius is already a challenge. The extra steering angle from the Super Duty axle makes a noticeable difference in tight terrain.
WHEEL BEARING SYSTEMS
Traditional Dana 60 axles use serviceable spindle bearings:
- Inner and outer tapered roller bearings
- Adjustable preload nuts
- Locking hub components
Ford Super Duty Dana 60 uses sealed unit bearing hub assemblies containing multiple rows of bearings within a single sealed housing. These are designed to support heavy loads and high braking forces. The integrated design eliminates bearing preload adjustments and ensures consistent tolerances throughout the service life of the hub.
BRAKE SYSTEM DESIGN
Brake performance becomes increasingly critical when running large tires and heavy off-road rigs at speed on descents.
Older Dana 60 axles typically use smaller rotors and calipers sized for lighter trucks.
The Ford Super Duty Dana 60 runs significantly larger brake rotors and calipers. Larger rotors increase braking torque by increasing the effective braking radius, generating greater stopping force for the same caliper pressure.
This improves:
- Braking efficiency with oversized tires
- Heat dissipation on long descents
- Overall stopping performance for a heavier SAS-equipped build
REAR AXLE COMPARISON: GM 14-BOLT VS FORD STERLING 10.5
GM 14-Bolt Full Float
The GM corporate 14-bolt full float is one of the strongest production rear axles ever installed under a half-ton or three-quarter-ton truck. The 1-ton full-float version uses a 10.5-inch ring gear and features a two-piece carrier manufactured from 8620 heat-treated alloy steel with additional pinion bearing support built into the housing.
GM 14-bolt full float specifications:
- Ring gear diameter: 10.5 inches
- Axle shaft spline count: 30 spline
- Axle shaft diameter: approximately 1.50 inches
- Pinion shaft diameter: 1.590-inch shank, 1.750 inches at splines
- Pinion spline count: 30 spline
- Axle tube diameter: approximately 3.25 inches OD, 0.50-inch wall
- Carrier break (ratio changeover point): between 4.10 and 4.56
- Brake system: drum brakes on most production versions
The removable pinion support design — sometimes called a Salisbury-style housing — allows the entire carrier and ring and pinion assembly to be pulled from the housing without disturbing the axle tubes. This simplifies gear changes and carrier swaps significantly.
One consistent limitation in off-road builds is that most production 14-bolt axles came with drum brakes. Disc conversion kits are widely available but add cost and labor. The 30-spline shaft is also a consideration for high-power or large-tire builds, though the shaft diameter is substantial enough to handle serious use.
Ford Sterling 10.5
The Ford Sterling 10.5 is a full-float rear axle used on Super Duty trucks that matches the 14-bolt's 10.5-inch ring gear diameter while incorporating a number of modern upgrades. It is a strong, capable rear axle that pairs well with the Super Duty front Dana 60 in a 1-ton axle swap build.
Ford Sterling 10.5 specifications:
- Ring gear diameter: 10.5 inches
- Axle shaft spline count: 35 spline
- Axle shaft diameter: approximately 1.50 inches
- Brake system: factory disc brakes
- Full-float hub design
The full-float design on both the 14-bolt and the Sterling means the axle shaft carries no vehicle weight — all load passes through the hub and wheel bearing assembly. This allows an axle shaft to be removed without the vehicle moving, and a broken shaft does not result in a lost wheel.
The 35-spline axle shafts on the Sterling provide improved torsional strength compared to the 14-bolt's 30-spline shafts at the same shaft diameter — a real advantage under the high torque loads generated by large tires and deep gearing.
Factory disc brakes on both the front and rear Super Duty axles eliminate a common upgrade cost that 14-bolt builds typically encounter, and deliver superior heat management and modulation on steep descents.
AXLE WIDTH AND VEHICLE STABILITY
Super Duty axles typically measure approximately 72 inches wheel mounting surface to wheel mounting surface.
The wider track width provides improved vehicle stability when running large tires, particularly on off-camber terrain. A wider stance reduces lateral weight transfer and improves overall vehicle control in the situations where a Toyota SAS build gets pushed hardest.
CONCLUSION
Both axle platforms covered here are proven, capable choices for a 1-ton axle swap on a Toyota Tacoma, 4Runner, or similar build.
The Dana 60 kingpin and GM 14-bolt combination has an established track record in off-road builds and benefits from decades of aftermarket development and parts availability.
However, the 2005+ Ford Super Duty Dana 60 and Sterling 10.5 platform brings a number of engineering improvements that make it a compelling choice for builders who want the most capable setup from the start:
- High pinion orientation for improved ground clearance and driveshaft angle on lifted Toyota SAS builds
- Larger diameter axle tubes for improved housing rigidity and deflection resistance
- 35-spline axle shafts on both front and rear for greater torsional strength
- 1550 series U-joints for improved shock load handling at the outer joints
- Improved steering angle for better maneuverability on long-wheelbase platforms
- Larger brakes with factory disc on both axles
- Sealed modern hub assemblies on the front for consistent bearing performance
For a Toyota solid axle swap build intended for serious trail use on large tires, the Super Duty platform offers a meaningful package of improvements over the traditional kingpin and 14-bolt combination — all from axles that are widely available at salvage yards across the country.
