Orbital Valve - Full Hydro Steering Valve Bracket DXF

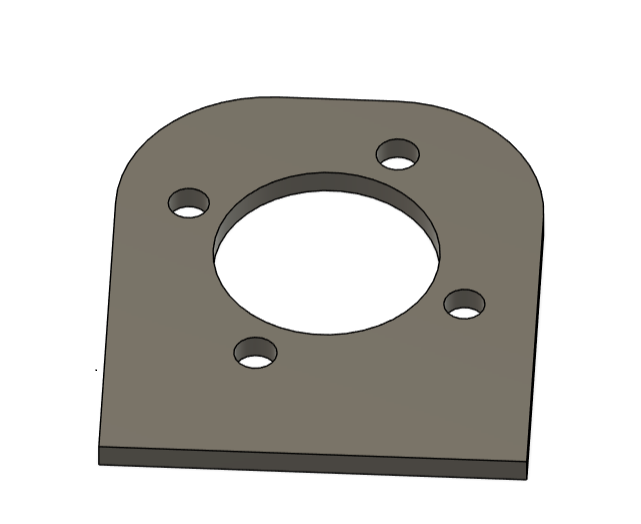

Full Hydro Steering Valve Bracket

Upgrade your steering system with our precision-engineered orbital valve bracket, designed specifically for full hydro steering conversions. This DXF template eliminates the guesswork and delivers a rock-solid mounting solution for your orbital valve installation.

What's Included

• Complete DXF cut file ready for CNC plasma or laser cutting
• Precision-designed bracket template for orbital valve mounting
• Engineered for secure, vibration-resistant installation

Technical Specifications

• Application: Full hydro steering orbital valve mounting
• File Format: DXF (compatible with all major cutting software)
• Material Recommendation: 1/4" steel plate or thicker for optimal strength
• Customization: Easily modify hole patterns and dimensions to match your specific setup

Why This Bracket Design Works

Full hydro steering demands precision and reliability. This bracket design provides the rigid mounting platform your orbital valve needs to perform flawlessly, even under extreme steering loads. The template accounts for proper valve orientation, clearance, and accessibility for maintenance.

Perfect for custom off-road builds, rock crawlers, and heavy-duty truck conversions where factory steering just won't cut it. Save hours of fabrication time with a proven design that's been tested in real-world applications.

Digital Download: Instant access after purchase - start fabricating today!
