17" Weld-On Beadlock DXF - CNC Cut Files

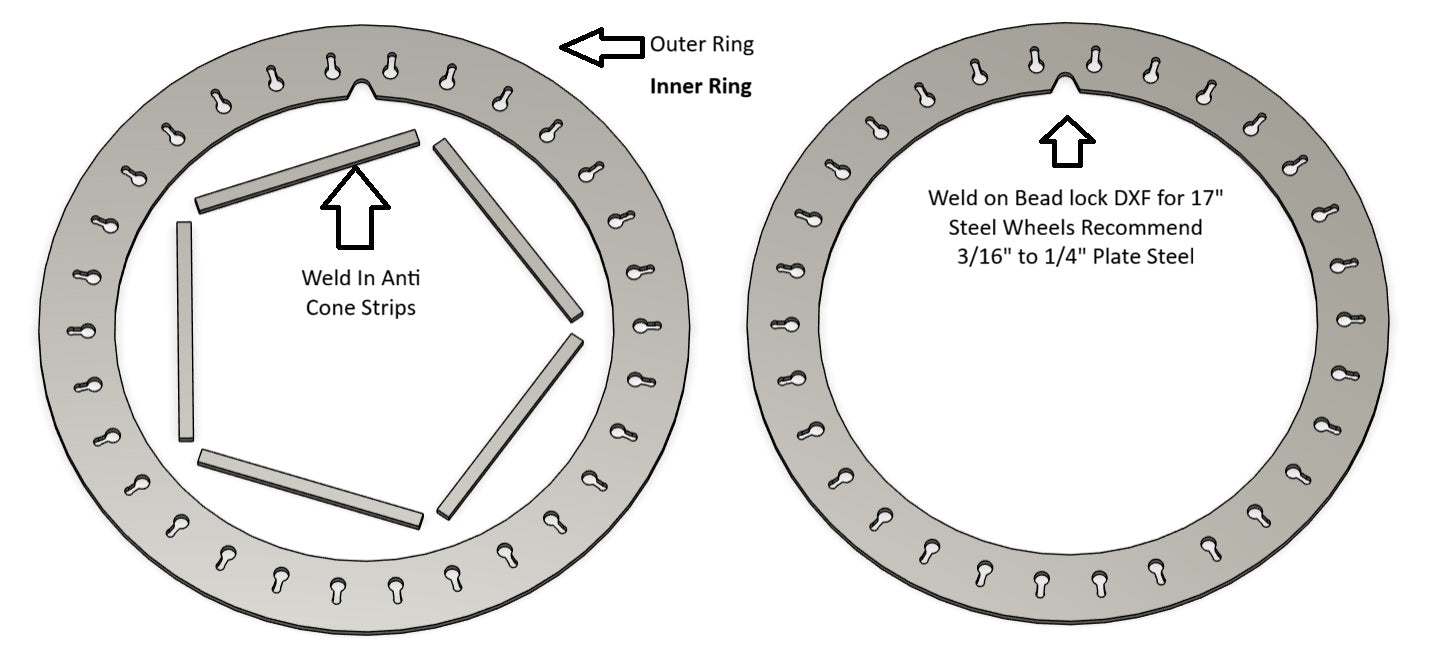

Professional-grade DXF cut files for building custom 17" weld-on beadlock wheels. Designed by fabricators for fabricators, these precision CNC files include everything you need: outer bead ring, inner bead ring, and anti-coning strips. Download instantly and start cutting.

What's Included

Outer Bead Ring - Recommended 1/4" material
Inner Bead Ring - Recommended 3/16" material
Anti-Coning Strips - Recommended 1/4" material
DXF format compatible with all CNC plasma, laser, and waterjet systems

Why Choose DTA Beadlock DXF Files

Precision-engineered by a fabricator with 25+ years experience
Proven fitment - designed for real-world off-road use
CNC-ready - optimized for plasma, laser, and waterjet cutting
Instant download - start your build today
Material recommendations included for proper strength and function
Built in Oregon by off-roaders who actually use this stuff

Technical Specifications

Wheel Size: 17" diameter
File Format: DXF (universal CNC compatibility)
Recommended Materials:
  - Outer Bead: 1/4" steel
  - Inner Bead: 3/16" steel
  - Anti-Coning Strips: 1/4" steel
Compatible Systems: CNC plasma, laser cutter, waterjet
Includes: Complete cut file set for one wheel (multiply for full set)

Who This Is For

Perfect for DIY fabricators, custom wheel builders, off-road shops, and anyone building their own beadlock wheels. Whether you're outfitting your trail rig or building wheels for customers, these files give you the precision and quality of professional beadlocks at a fraction of the cost.

Usage & Requirements

CNC cutting system (plasma, laser, or waterjet)
Basic welding skills and equipment
Steel material as specified above
Digital file - no physical product shipped
