1995-2004 Toyota Tacoma/ 1996-2002 Toyota 4Runner Solid Axle 3 Link Kit 05+ Super Duty 60

DTA Fabrication – SAS 3-Link Kit

Built to order — allow 2–6 weeks before shipping.

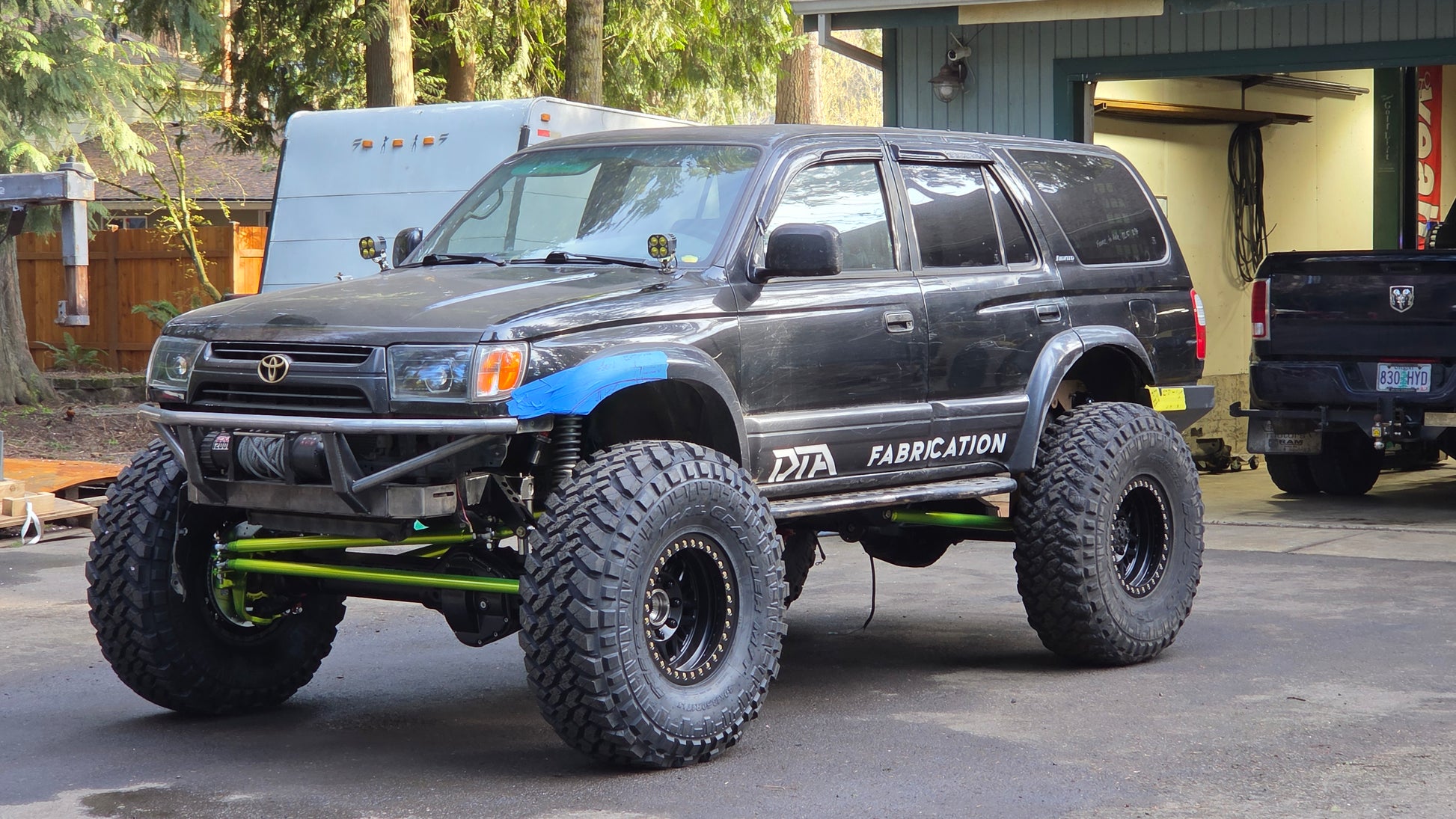

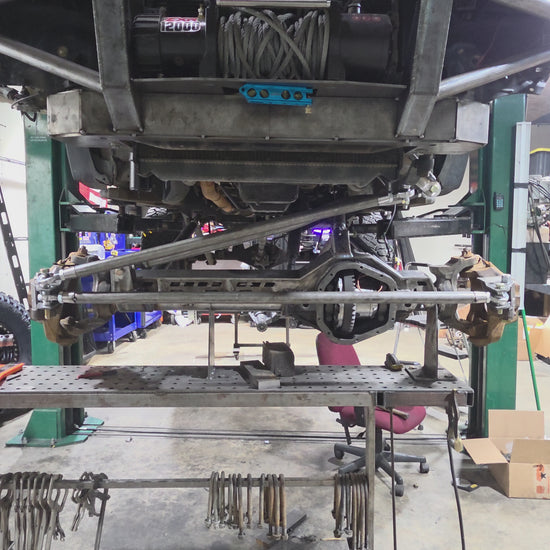

Take your 1996–2004 Toyota Tacoma or 3rd Gen 4Runner to the next level with our 3-Link Solid Axle Swap Kit. Designed for extreme off-road capability without sacrificing street manners.

Designed for use with 05 – 2016 Super Duty axles. Optimized for 12" stroke 2.0 or 2.5 coilovers and 38"–42" tires

Recommended Coilover Spring Rates:

• Top Spring: 150–200 lb/in
• Bottom Spring: 200–250 lb/in

Frame Reinforcement Plates

• 3/16" CNC-cut steel for superior strength
• Provides additional frame strength and a foundation for the panhard bar and shock towers
• Driver-side plate includes a location for Toyota IFS box mounting that pushes your box as far forward as possible without hacking up your core support.

Axle Truss & Brackets

• 1/4" steel low-profile axle truss designed to also be your bump stop pad.
• 1/4" plate link mounts with side-load gussets for added strength

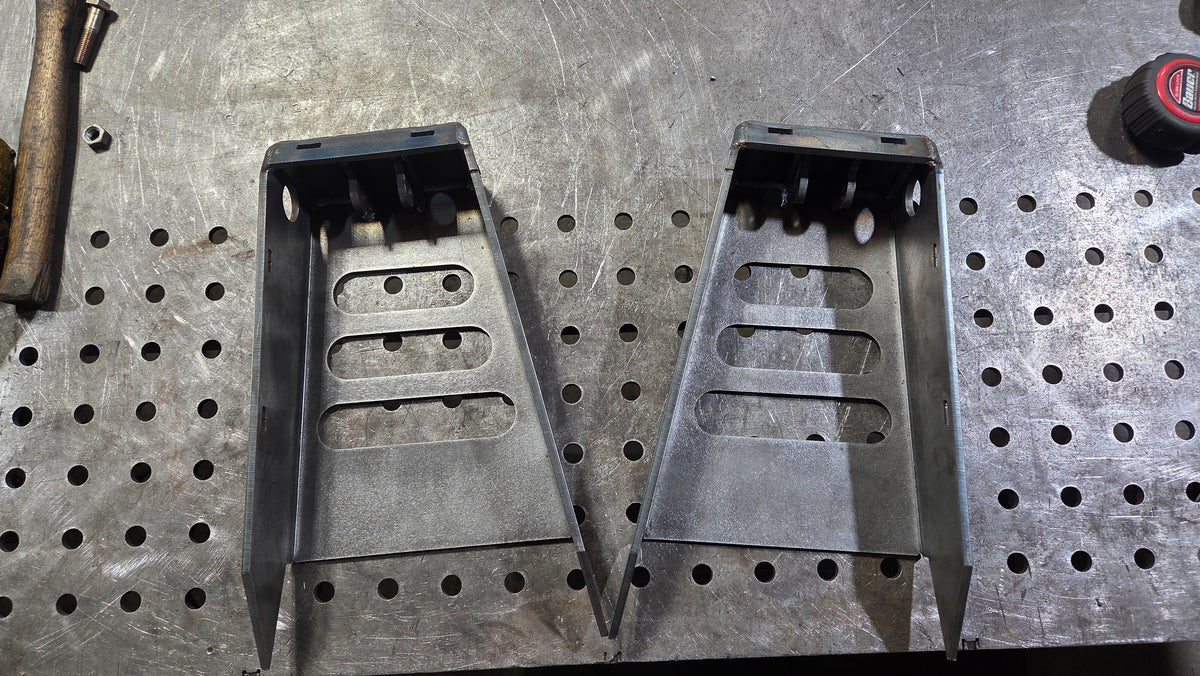

Shock Towers

• 1/4" thick steel to reduce flex under extreme conditions
• Integrated remote reservoir mounts for clean, secure fitment
• Designed flat for easy cross brace addition
• Does not interfere with the steering shaft

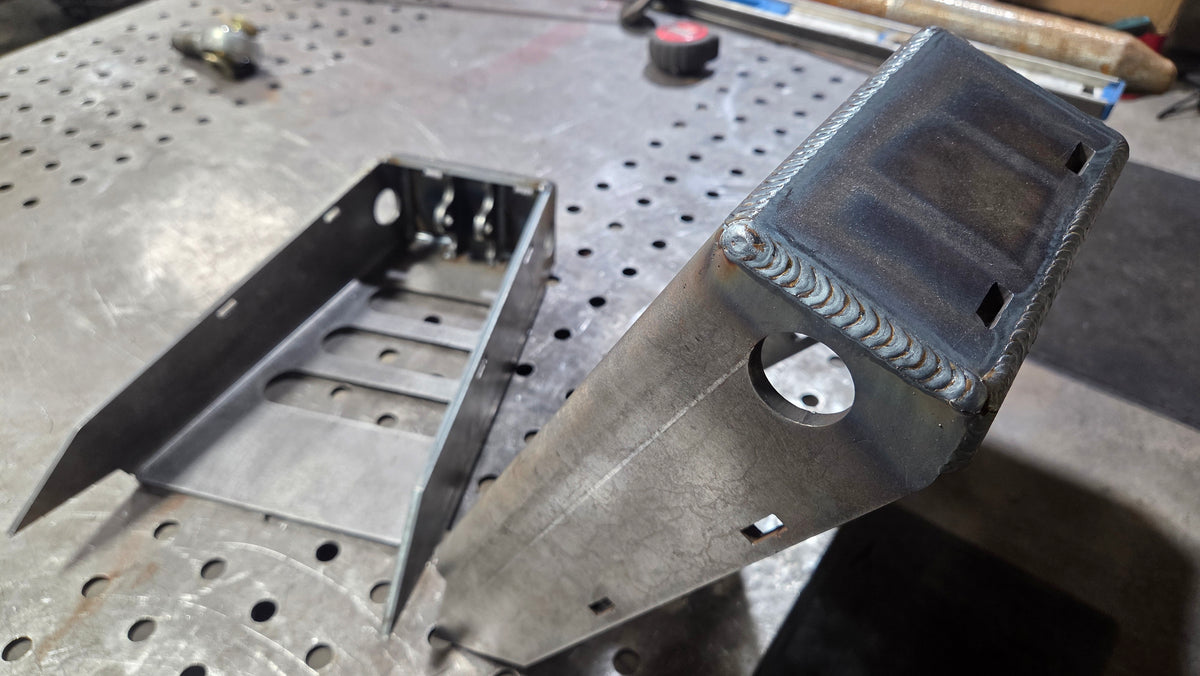

Transmission Crossmember

• Direct weld-in replacement for the factory crossmember
• 3-piece design allows easy transmission removal without disturbing lower links
• 1/4" CNC-cut steel for maximum durability
• Drop-down design for faster assembly and alignment with hardware going virticaly
• Dual transfer case setups require modification (mount ships loose)

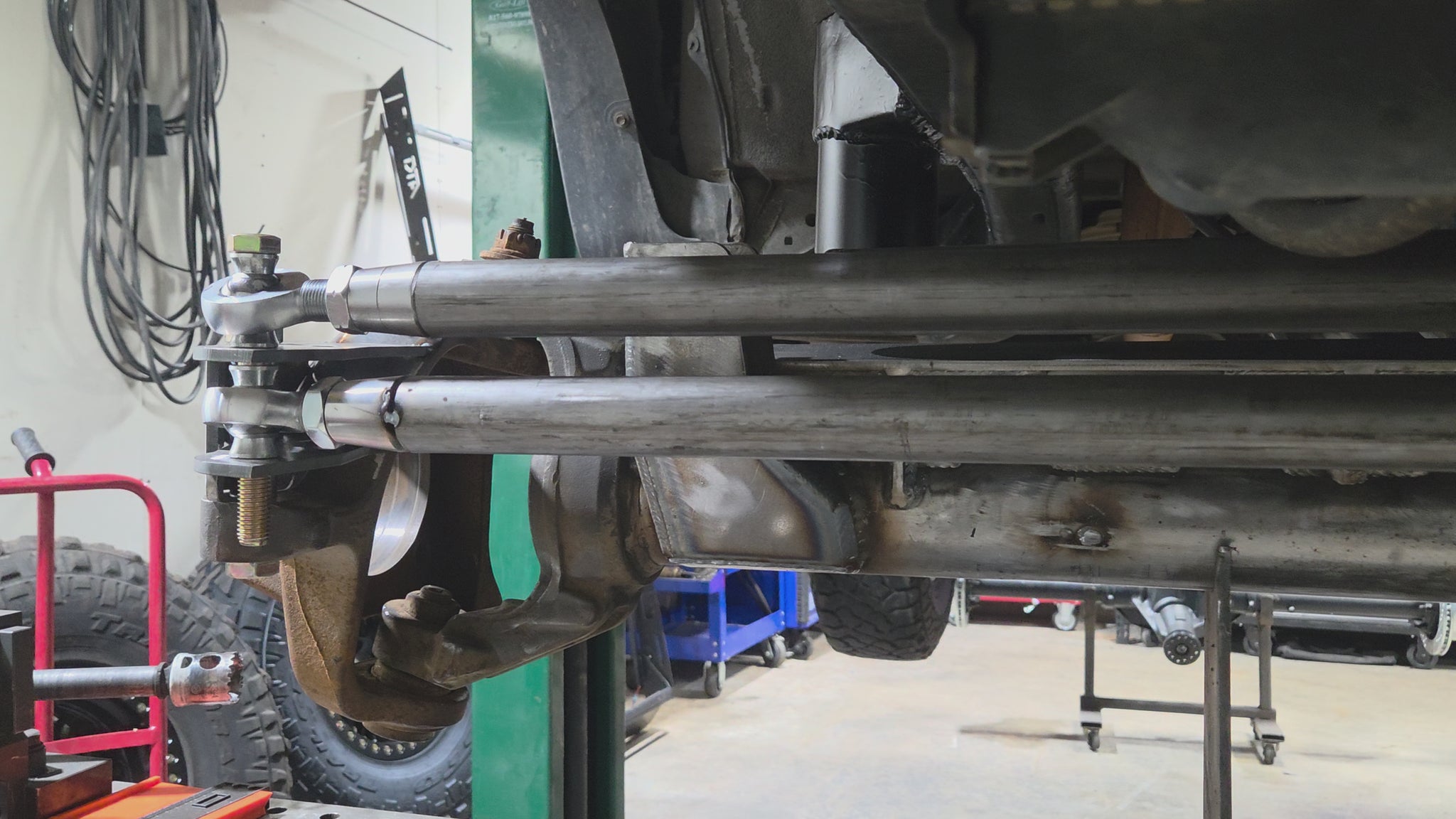

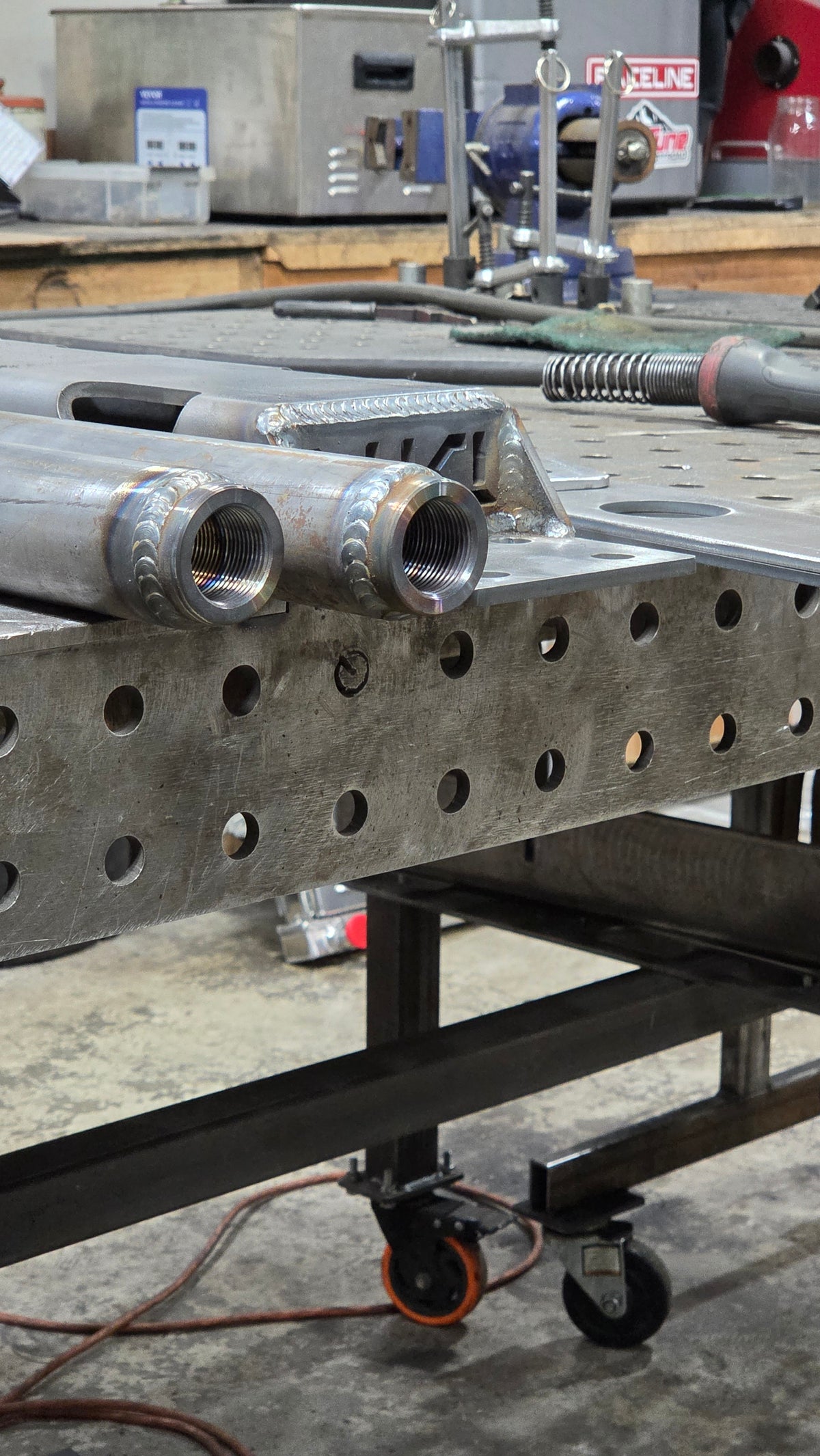

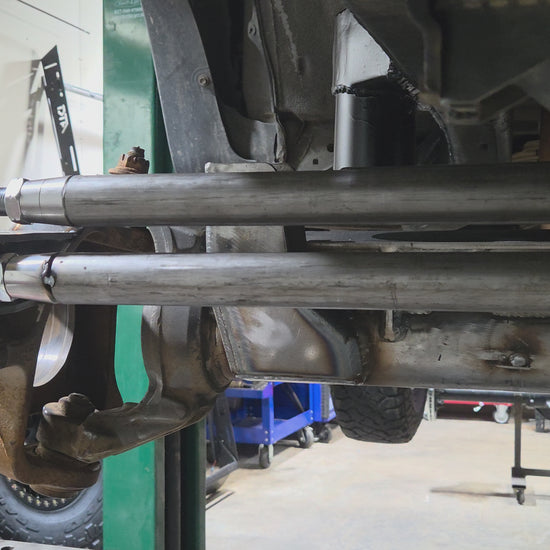

Suspension Links

• Lower links: 2" x .250" wall DOM tubing with your choice of 1.25" Heim or Enduro joints
• Upper link: 1.75" x .250" wall DOM tubing with 7/8" Heim joints
• Pre-welded and ready to install

Panhard Bar

• 1.5" x .250" wall DOM tubing Bent to clear diff
• 3/4" Heim joints on both ends for easy adjustment
• Pre-welded for plug-and-play installation

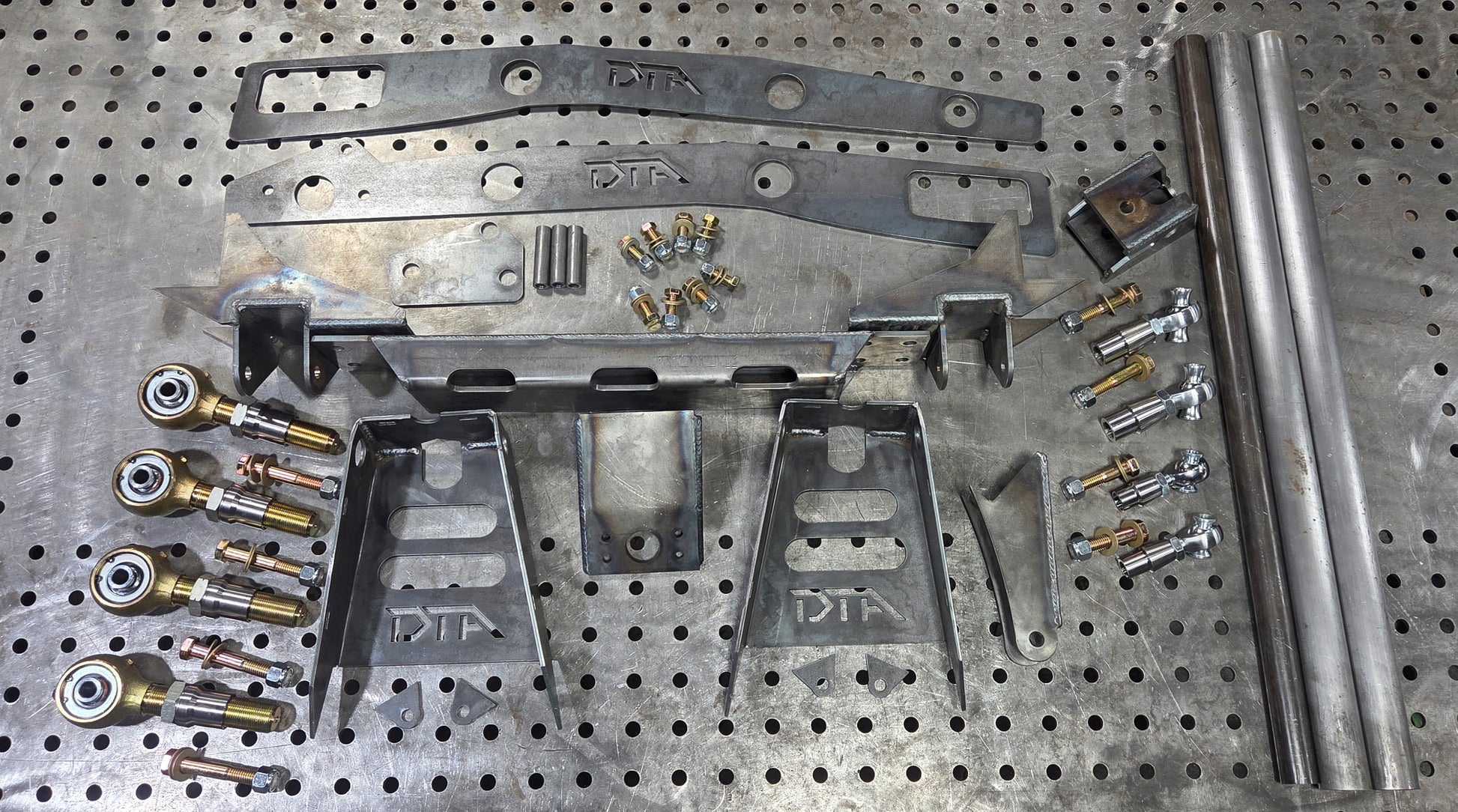

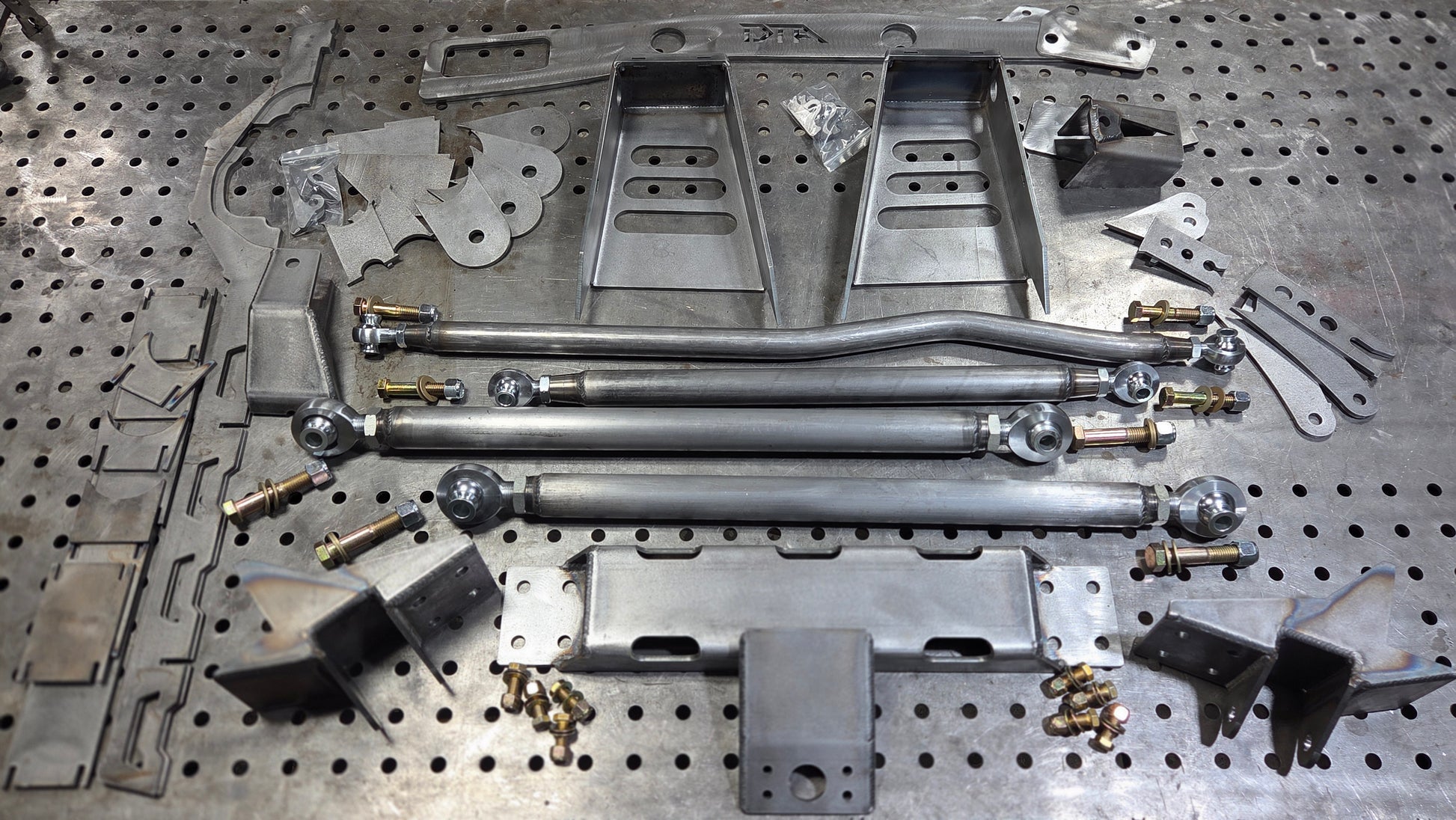

What's Included:

• Frame reinforcement plates
• 3-piece transmission crossmember
• Frame-side upper link mount/frame plate
• Shock towers
• Frame-side panhard bar mount
• Axle-side panhard mount
• Axle-side lower link mounts
• Axle-side upper link mount
• Heavy-duty panhard bar
• 2 Lower links
• 1 Upper link
• Lower shock mounts
• Axle truss
• Hardware
• FREE SHIPPING!

Important Notice: This kit is built to order — allow 2–6 weeks before shipping. Call to confirm availability. Designed for off-road use only. No warranty is provided. Professional installation is highly recommended.
